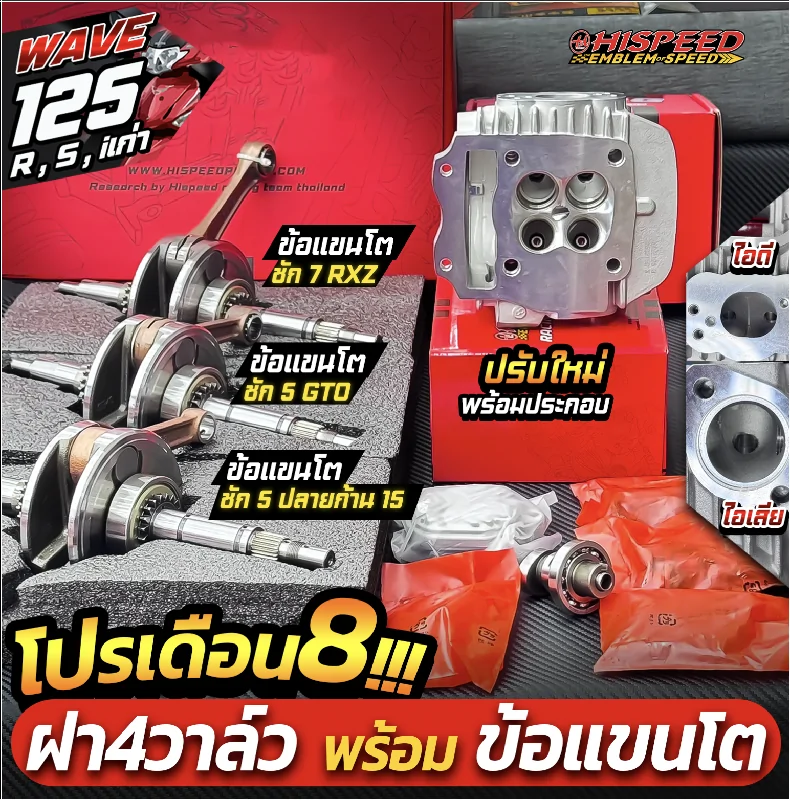

โปรโมชั่น ชุดคิท WAVE125i เก่า(ไฟเลี้ยวบังลม) , WAVE125R , WAVE125S เซตที่ 8 ชุดฝาสูบ 4 วาล์ว แบรนด์แรง (RANG) สำหรับ WAVE125 พร้อมข้อเหวี่ยงแขนโต (เลือกระยะชักได้)

Motorcycle model

WAVE125i Old
WAVE125R
WAVE125S

Cylinder block code

KPH

Product specification

Crankshaft Specifications

5 mm Stroke Crankshaft – Forge Rod

• Performance crankshaft with permanent balancing

• Stroke: 5 mm

• Special hardened large crank journals

• Includes keyway groove for HISPEED clutch weights

• Crank web diameter: 104 mm

• Connecting rod length: 98 mm

• Rod pin size: 15 mm

5 mm Stroke Crankshaft – GTO Rod

• Performance crankshaft with permanent balancing

• Stroke: 5 mm

• Special hardened large crank journals

• Includes keyway groove for HISPEED clutch weights

• Crank web diameter: 104 mm

• Connecting rod length: 100 mm

• Rod pin size: 15 mm

7 mm Stroke Crankshaft – RXZ Rod

• Performance crankshaft with permanent balancing

• Stroke: 7 mm

• Special hardened large crank journals

• Includes keyway groove for HISPEED clutch weights

• Crank web diameter: 105 mm

• Heavy-duty RXZ connecting rod, length: 105 mm

• Rod pin size: 16 mm

4-Valve Cylinder Head Set for WAVE125 – RANG Brand

Product Details:

• Performance head set available in two sizes: 21/24 mm and 22/25 mm

• Supports piston sizes ranging from 57 mm to 70 mm

Product in box

1. Crankshaft x 1 unit
2. Cylinder Head x 1 set

Additional explanation

Product Warranty Terms
1. Upon receiving the product, customers must inspect
the item before assembly for any damages or defects.
Should you encounter any issues with the product
purchased from HISPEED, you are required to report
within 7 days of receipt for consideration under
the specified warranty conditions.
2. Products that have been worn or installed are not eligible
for exchange or return under any circumstances.
