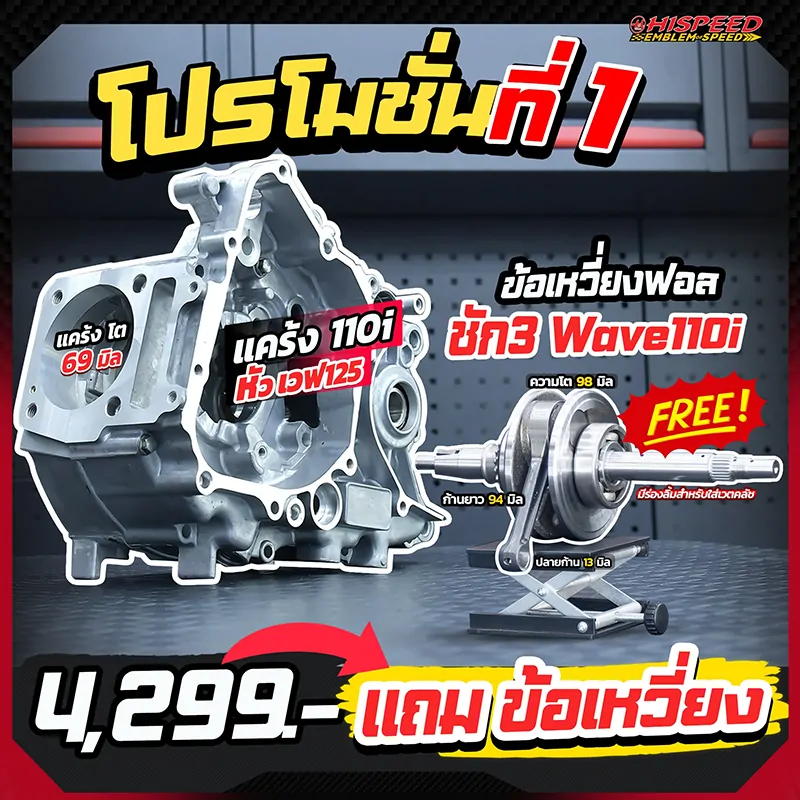

โปรโมชั่นที่ 1 แคร้ง WAVE110i แปลงใส่หัว WAVE125 แถมข้อเหวี่ยงฟอร์จ ชัก 3 มิล สำหรับ WAVE110i

Motorcycle model

WAVE110i Year: 2009 – 2020

Cylinder block code

–

Product specification

Crankcase Specifications
– Modified to fit Wave125 cylinder heads: Compatible with both 2-valve and 4-valve configurations.
– Crankcase bore size: 69 mm.
– Crankshaft compatibility:

• Can fit Wave125 crankshafts (with modifications).
• Compatible with Wave110i crankshafts.

– Oil pump: Uses the stock oil pump.
– Outer diameter expansion: Expandable up to 71 mm (maximum of 76 mm).
– Piston compatibility:

• Supports pistons up to 70 mm diameter.
• If not further expanded, accommodates pistons around 66 mm diameter.

Crankshaft Specifications

– Stroke length: 3 mm.
– Forged and permanently balanced.
– Rod length: 94 mm.
– Rod end diameter: 13 mm.
– Keyway groove: Included for weight clutch installation.

Product in box

1. Crankcase x1 set
2. Crankshaft x1 pcs

Additional explanation

1. Spare part to replace a lost or damaged part of an OEM parts
2. This product distributed under the Hispeed brand. it is not OEM parts.

Product Warranty Terms
1. Upon receiving the product, customers must inspect
the item before assembly for any damages or defects.
Should you encounter any issues with the product
purchased from HISPEED, you are required to report
within 7 days of receipt for consideration under
the specified warranty conditions.
2. Products that have been worn or installed are not eligible
for exchange or return under any circumstances.
