โปรโมชั่น แคร้ง WAVE110i ใส่หัว WAVE125 พร้อมข้อเหวี่ยงแขนโต ชัก 6 มิล สำหรับ WAVE110i, ชุดฝาสูบ 4 วาล์ว แบรนด์แรง (RANG) สำหรับ WAVE125, เสื้อสูบ+ลูกสูบ สำหรับ WAVE125 ขนาด 59 – 66 มิล (เลือกขนาดได้)

Motorcycle model

WAVE110i Year: 2009 – 2020

Cylinder block code

–

Product specification

Crankcase Specifications
– Modified to fit Wave125 cylinder heads: Compatible with both 2-valve and 4-valve configurations.
– Crankcase bore size: 69 mm.
– Crankshaft compatibility:

• Can fit Wave125 crankshafts (with modifications).
• Compatible with Wave110i crankshafts.

– Oil pump: Uses the stock oil pump.
– Outer diameter expansion: Expandable up to 71 mm (maximum of 76 mm).
– Piston compatibility:

• Supports pistons up to 70 mm diameter.
• If not further expanded, accommodates pistons around 66 mm diameter.

Cylinder Head Specifications
1. 4-Valve Cylinder Head for WAVE125 (Brand: RANG)

• Valve Sizes Available:

  • 19/22 mm.
  • 21/24 mm.
  • 22/25 mm.

• Piston Compatibility:

  • Supports pistons ranging from 57 mm to 70 mm in diameter.

Specifications for Cylinder Block with Piston (WAVE125)
1. Piston Sizes:

• Available from 57 mm to 66 mm (selectable).

Specifications for Crankshaft (WAVE110i, 2011 – 2020)
1. Permanent Balancing: Ensures smooth operation and reduced vibration.
2. Oversized Arms: Enhanced durability and performance.
3. Stroke Length: 6 mm for increased displacement.
4. Crank Diameter: 102 mm.
5. Connecting Rod:

• Model: GTO.
• Rod Length: 100 mm.

6. Rod End Pin Diameter: 15 mm.

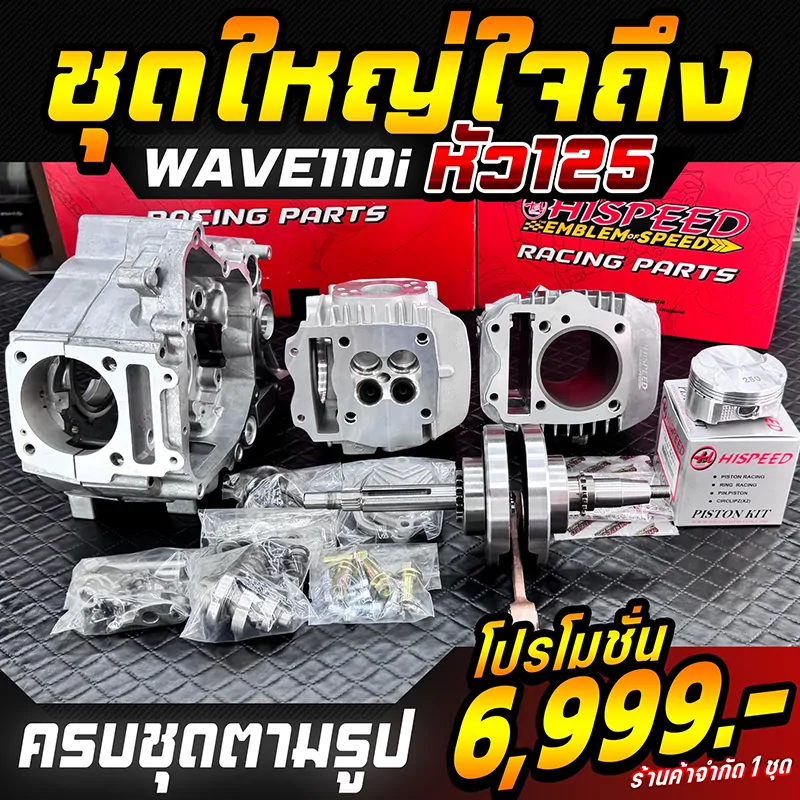

Product in box

1. Crankcase x1 set
2. Cylinder Head x1 set
3. Crankshaft x1 set
4. Cylinder Block with Piston x1 Set

Additional explanation

1. Spare part to replace a lost or damaged part of an OEM parts
2. This product distributed under the Hispeed brand. it is not OEM parts.

Product Warranty Terms
1. Upon receiving the product, customers must inspect
the item before assembly for any damages or defects.
Should you encounter any issues with the product
purchased from HISPEED, you are required to report
within 7 days of receipt for consideration under
the specified warranty conditions.
2. Products that have been worn or installed are not eligible
for exchange or return under any circumstances.
